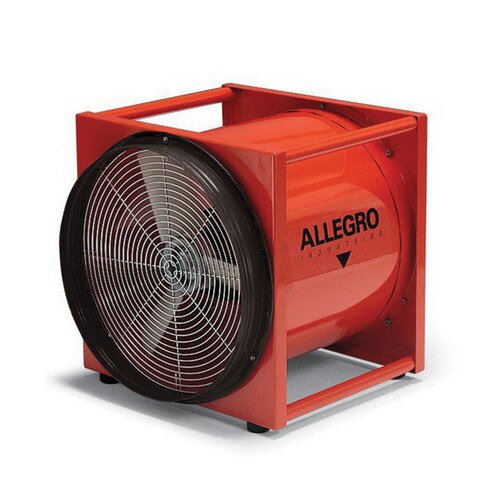

Allegro® 9525-50EX Axial Ventilation Blower, 20 in Duct, 6837 cfm, 115 to 230 VAC
Details
Details
Features
Complete unit epoxy powder coated in "safety orange"
Interchangeable flange for intake or exhaust side-mounting
16 ga cold-rolled steel housing
Integrated carrying handles
Steel grill (zinc plated)
Built-in on-off switch
Duct grounding lug
Specifications
Item Name - Ventilation Blower
Type - Axial
Material - Steel
Length - 19-1/2 in
Height - 22-1/2
Width - 22 in
Voltage Rating - 115 to 230
Duct Diameter - 20
Speed - 3450
Maximum Flow In Free Air - 6837 cfm
Power Rating - 1-1/2
Amperage Rating - 15.5
Frequency Rating - 50/60
Marketing Description - Designed for applications requiring a maximum amount of output. The housing is made from 16 ga cold-rolled steel and powder-coated in a "safety orange" color and holds a three-blade impeller. Powered by a 1-1/2 hp, 3450 rpm UL Listed, IECex/ATEX/INMETRO certified motor. It also includes a 115 V plug, an interchangeable flange for intake or exhaust-mounting, integrated carry handles for easy transport, and a steel/zinc-plated grill. 4 rubber feet, a built-in on-off switch, and a voltage change switch are added features of this powerhouse unit.
Color - Orange
Product Weight - 1
