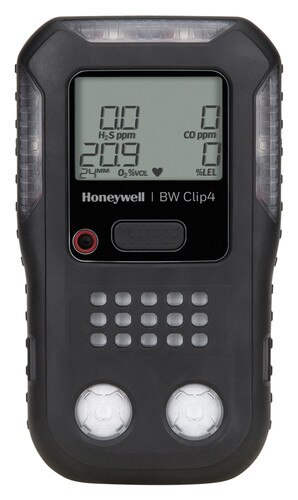

BWC4-B-N BW Clip4 4-Gas Detector (O2, LEL, H2S, CO), North American version - Black Housing

"Always on" technology with Honeywell safety and dependability

When you're fully occupied on the job, the last thing you need is hassles with your gas protection system. Why worry about charging the gas detector, checking the battery, or replacing sensors when you don't have to? The BW Clip4 is designed for simplicity, ease of use, and cost-effective ownership. It's one less thing to worry about. As you go through your busy day, you receive constant protection from Honeywell's supporting technology and quality.

Runs Continuously for Two Full Years

It's as easy as activating and clipping it on. Never charge it up or think about the battery for 24 months.

FEATURES

Wearing the BW Clip4

• Comfortable, ergonomic, and durable

• Small profile - in tight spaces, it's unnoticeable

Using BW Clip4

• Single-button operation

• User-friendly and virtually tamper-proof operation

• Intuitive LCD icon technology shows you real-time gas readings

BW Clip4 Compliance

• Non-compliance indicators let you know the unit hasn't been bump tested on schedule

• Battery, sensors, circuit integrity, and visual/audible alarms are automatically tested daily

BW Clip4 Management

• IntelliDoX docking simplifies data management

BW Clip4 Durability

• The boot is concussion-proof

• Tested under harsh conditions

BW Clip4 Technical Specifications

• TYPICAL BATTERY LIFE Two years, continuous operation

• EVENT LOGGING 70 of your most recent events

• OPERATING TEMPERATURE -20 to +50°C (-4 to +131°F)

• HUMIDITY 5 - 95% RH (non-condensing) continuous

• SIZE 4.7 x 2.7 x 1.3 in. / 12.0 x 6.8 x 3.2 cm

• WEIGHT 8.2 oz. / 233 grams

• INGRESS PROTECTION rated at IP68

• ALARMS Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit)

• SELF-TEST: Activated detectors automatically perform one internal diagnostic test every24 hours (sensors, battery, and circuitry).

BW Clip4 Options

• Set STEL for 1-minute intervals (from 5 to 15 minutes)

• Calibration span levels

• Calibration interval setting

• Bump test interval setting

• Stealth mode

• Select combustible gases measurement: 0-100% LEL (Lower Explosive Limit) or Methane gas 0-5.0% v/v

• Calibration due date from 1 to 365 days (or zero for off)

• Individual sensor control

• Latching alarms

APPROVALS AND CERTIFICATIONS:

• Class I, Div 1, Group A, B, C, D

• Class I, Zone 0, Group IIC

• ATEX: II 1G Ex ia IIC T4 Ga

• IECEx: Ex ia IIC T4 Ga

• X: Conforms to all (applicable) European directives.

• For additional certifications, please refer to the manual or contact Honeywell Analytics.

WARRANTY Full two years (includes battery & sensors)
