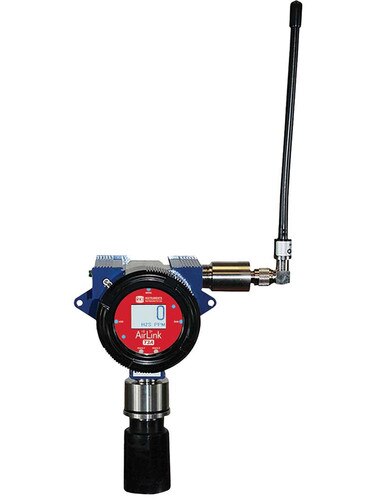

RKI Instruments AirLink T3A Sensor/Transmitter with j-box, Hydrogen Chloride (HCl), 0-100 ppm - 66-6304-99

The AirLink T3A Series Gas Detector is a versatile assembly that utilizes an electrochemical, infrared, or catalytic bead sensor element to detect a variety of hazardous gases in ambient air. Wired power (12 to 35 VDC) with wireless communication controller. An RKI wireless T3A also has 4-20 mA analog and RS-485 Modbus outputs as standard. Magnetic switches enable non-intrusive calibration in the field, as well as full system settings and diagnostics.

Features

Electrochemical, Infrared, and catalytic bead sensors
Wired power (3-Wire), 12 to 35 VDC operating voltage
Output options: Wireless 900 MHz or 2.4 GHz; 4-20mA (3-wire) analog; RS-485 Modbus
Operating temperature range -40°C to +54°C
Graphical LCD with LED backlight
3 Push-button interface (ADD, MENU, SUB) with 3 corresponding magnetic, non-intrusive switches
2 Individually configurable alarms
2 Front panel LED indicators (amber and red)
2 Optional fully programmable alarm relays (dry contacts)
