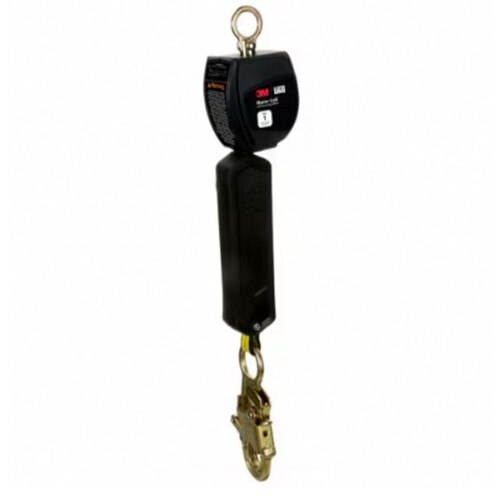

  • 3M DBI-SALA® Nano-Lok Personal Self Retracting Lifeline, Web Steel Snap Hook, 3100534, 6 ft., Class 1, ANSI

3M DBI-SALA® Nano-Lok Personal Self Retracting Lifeline, Web Steel Snap Hook, 3100534, 6 ft., Class 1, ANSI

(0)No Reviews yet

Details

Details

3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline is lightweight with a compact design and industrial-strength durability. 3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline offers versatility for many different industrial applications. 3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline is ideal for direct connection to most harnesses. Whether the application requires single or twin leg configurations, mounting to an overhead anchor, or connection directly to a harness, there are numerous models to choose from that suit almost any application. 3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline locks quickly, stopping a fall within inches - providing more protection at low heights. These features are key safety improvements and provide the user with additional security on the job.

Features

  • Compact & lightweight design

  • Quick-activating speed-sensing brake system

  • Durable thermoplastic housing

  • Swiveling anchorage loop

  • Built-in connector for direct attachment to harness

  • High-capacity external energy absorber and impact indicator

  • RFID-equipped and compatible with an inventory management system

  • Available in multiple styles and configurations

Details

ANSI Class Level

Class 1

Average Arrest Force (Imperial)

1125 lbf (ANSI), 1125 lbf (OSHA 130 lb - 310 lb)

Average Arrest Force (Metric)

5 kN (ANSI), 5 kN (OSHA 130 lb - 310 lb)

Brands

DBI-SALA®

Connected Safety ID Equipped

Yes

Housing Material

Nylon Thermoplastic

Housing Type

Thermoplastic

Install Type

Portable & Removable

Leg Count

Single-Leg

Lifeline Connection Type

Snap Hook

Lifeline Hook Material

Zinc Plated Steel

Lifeline Length (Imperial)

6 ft

Lifeline Length (Metric)

1.8 m

Lifeline Material

Web

Maximum Arrest Force (Imperial)

1800 lbf (ANSI), 1800 lbf (OSHA 130 lb - 310 lb)

Maximum Arrest Force (Metric)

8 kN (ANSI), 8 kN (OSHA 130 lb - 310 lb)

Maximum Number of Users

One

Mounting Type

Overhead Anchor Point

Net Weight (Imperial)

2.27 lb

Net Weight (Metric)

1.03 kg

Product Color

Blue

Product Series

Nano-Lok™

Product Type

Quick Connect Self-retracting Lifeline (Web)

Recommended Industry

Automotive, Construction, General Industrial, General Industry, General Manufacturing, Industrial, Maintenance, Manufacturing, Metal Fabrication, Metal Production & Fabrication, Military Maintenance, Repair & Operation (MRO), Mining, Oil & Gas, Pharmaceutical, Renewable, Transportation, Utilities, Utility, Warehousing, Wind Energy

Specifications Met

29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, ANSI/ASSP Z359.14-2021

Weight Capacity (Imperial)

420 lb.

Weight Capacity (Metric)

190 kg

Working Length (Imperial)

4

Working Length (Metric)

1.22

Dimensions and Classifications

Overall Length (Imperial)

6 ft

Overall Length (Metric)

1.83 m
