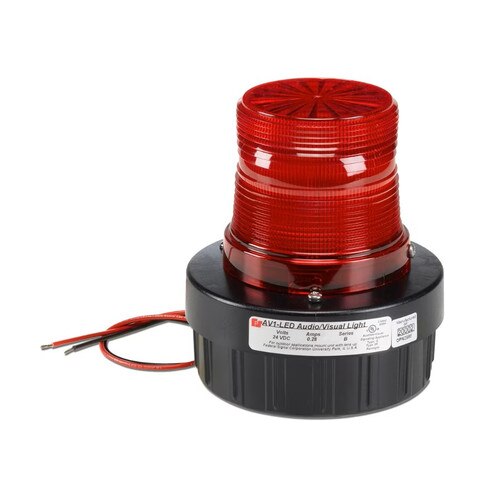

AV1-LED 24VDC Flashing Combination Audible/Visual Signal, Red

The model AV1-LED warning light is a combination audible/visual signal. The warning light also features a 100% polycarbonate housing that is rated for Type 3R rain-tight applications.

All AV1-LED alert light units feature a twist-and-lock lens design, allowing for tool-free access to the LED. The Fresnel lens provides superior visibility in all directions.

The integrated buzzer provides an 85 dBa output at 10 feet (95 dBa at 1 meter). The unit can operate in two ways: flashing/buzzer combination or flashing only. The LED flash pattern can be field-adjusted to 60 FPM or 75 FPM, via a jumper on the PC board.

Each unit is factory-assembled with two color-coded leads. If desired, the user can remove the leads and connect directly to the terminal block located at the base of the unit.

FEATURES

Available in 24VDC
Five lamp/lens colors: Amber, Blue, Clear, Green, and Red
50,000-hour LED
Surface, integrated 1/2-inch NPT pipe, and 4-inch electrical box mount
Twist-off lens for easy access
Internal buzzer produces 85 dBa at 10' (95 dBa @ 1m)
Flexible operation allows the unit to independently flash without a buzzer if desired
PLC compatible
Type 3R enclosure
UL and cUL Listed
