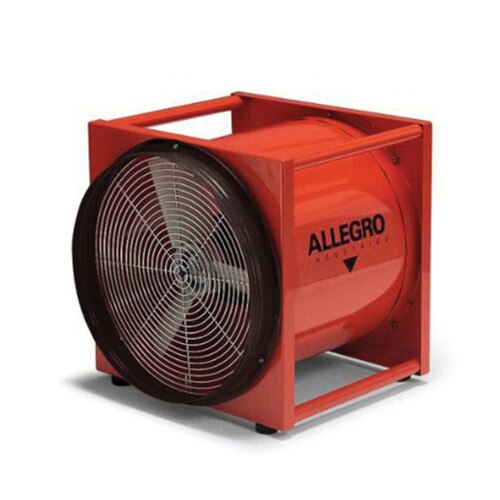

Allegro® 9516 Axial Ventilation Blower, 16 in Duct, 5500 cfm, 115 to 230 VAC
Details
Details
Allegro® Ventilation Blower, Axial, 115 to 230 VAC, 16 in Duct Dia, Steel, 3450 rpm, 5500 cfm Maximum Flow in Free Air, Orange, 18 in Length, 18 in Width, 19 in Height, 2 hp, 21 A, 60 Hz, For Use With: Duct
Features
Complete unit epoxy powder coated in orange
Interchangeable flange for intake or exhaust side-mounting
18 ga cold-rolled steel housing
Bolted motor-mount construction
Integrated carrying handles
Steel/chrome-plated grill
Equipped with a 4 ft rubber
Specifications
Item Name - Ventilation Blower
Type - Axial
Material - Steel
Length - 18
Suitable For Use With - Duct
Height - 19
Width - 18
Voltage Rating - 115 to 230
Duct Diameter - 16
Speed - 3450
Maximum Flow In Free Air - 5500
Power Rating - 2
Amperage Rating - 21
Frequency Rating - 60
Specifications - Allegro_9516_Specification_Sheet.pdf
Marketing Description - Designed for applications requiring a maximum amount of output. Our 16-inch high-output blower offers a 2-hp electric motor housed in a rugged metal casing. Its efficient three-blade impeller and high-powered motor allow for high air flow. Includes a special 30 A plug.
Color - Orange
