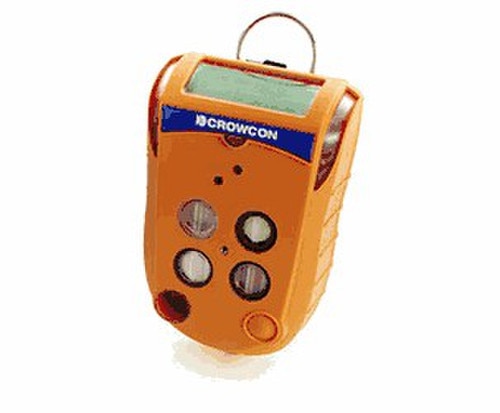

GPC-0014-NU-A Gas-Pro 4-Gas Confined Space Entry Monitor, CO/H2S/O2/CH4 with Multi Region Power Lead, Pumped with Flow Plate by Crowcon

Designed with industrial environments and fleet managers in mind, Gas-Pro offers detection of up to 5 gases in a compact and rugged solution capable of withstanding harsh environments and everyday use. Gas-Pro has an easy-to-read top mount display combining ease of use with user focused features. An optional internal pump, activated with the flow plate, takes the pain out of pre-entry testing and allows Gas-Pro to be worn either in pumped or diffusion modes.

User friendly

• Top mount display

• Simple single button operation

• Intuitive functionality

• Makes it easy to read at a glance

• Reduces training time

• Can be used whilst wearing gloves

Adaptable

• Monitor 5 gases from many different options

• Pumped and diffusion solutions

• Multiple languages

• Automatic fail safe flow plate recognition

• Specific and unique Pre-Entry Check (PEC ) mode

• Offers multiple uses within one compact detector

• Takes away the pain of pre-entry testing

Reliable

• Reliable lithium-ion battery

• Water and dust resistant to IP65 and IP67

• Bump and calibration reminders

• Provides over 14 hours use from a 7.5 hour charge

• Capable of withstanding harsh environments

• Full compliance

• Specifications

• Size	43 x 130 x 84mm (1.7 x 5.1 x 3.3ins)
  Weight	309g 4 gas (10.8oz)/ 340g pumped (11.9oz) 333g 5 gas (11.7oz)/ 362g pumped (12.7oz)
  Alarms	Audible >95dB @ 30cm (98dB @ 30cm in loud mode) Visual - all angle dual red/blue LEDs Vibrating alert
  Display	Top mount for ease of view with dual color backlight (green/red)
  Data logging	125hrs at 10 second intervals (45,000 logs)
  Event logging	Alarm, over range, calibration, bump, on/off, TWA, 1000 events
  Battery	Rechargeable Li-ion, >14 hours (13 hours pumped operation) based on CH4, O2, H2S, CO Typical charge time 7.5 hours
  Sampling	Internal pump as option
  Operating temperature	-20° C to +55° C (-4° F to +131° F)
  Storage	-25° C to +65° C (-13° F to +149° F)
  Humidity	10 to 95% RH+
  Ingress protection	Independently tested to IP65 and IP67
  Approvals	IECEx: Ex d ia IIC T4 Gb Tamb -20° C to +55° C ATEX: II 2 G Ex d ia IIC T4 Gb Tamb -20° C to +55° C UL: Gas detector use in hazardous locations Class 1, Division 1, Groups A, B, C, and D only as to intrinsic safety INMETRO
  Compliance	FCC and CE Complies with EMC Directive 2004/108/EC EN50270 and ICES-003
  Interface	Data connection for gas test solutions and direct to PC
  Charging	Direct connect to multiregion power supply Vehicle charger adaptor Desk top cradle USB power and communications lead





  Gas	Range	Typical Alarms	Resolution
  PID	0-1000ppm	50ppm	1ppm
  Ammonia (NH3)	0-100ppm	25ppm	1ppm
  Carbon dioxide (CO2)	0-5% vol.	0.5% vol.	0.01% vol.
  Carbon monoxide (CO)	0-2000ppm	35ppm	1ppm
  Carbon monoxide (CO)	0-500ppm	35ppm	1ppm
  Carbon monoxide (hydrogen filtered)	0-2000ppm	35ppm	1ppm
  Chlorine (Cl2)	0-5ppm	0.5ppm	0.1ppm
  Dual toxic	H2S 0-100ppm CO 0-500ppm	10ppm 35ppm	1ppm 1ppm
  Flammable	0-100% LEL	10% LEL	1% LEL
  Hydrogen sulfide (H2S)	0-100ppm	10ppm	1ppm
  Nitrogen dioxide (NO2)	0-20ppm	3ppm	0.5ppm
  Oxygen (O)	0-25% vol.	19.5%/ 23.5% vol.	0.1% vol.
  Ozone	0-1ppm	0.1ppm	0.01ppm
  Sulfur dioxide (SO2)	0-20ppm	2ppm	0.1ppm
  Chlorine dioxide (ClO2)	0-1ppm	0.1ppm	0.1ppm
  Nitric oxide (NO)	0-100ppm	25ppm	1ppm
