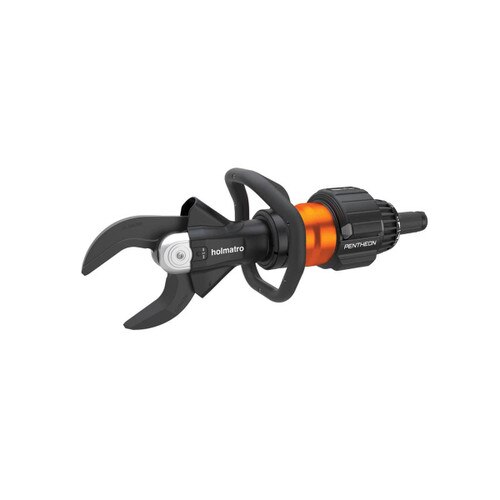

Holmatro Pentheon Series Cutter PCU30CL

Cordless Inclined Cutter, part of the Holmatro Pentheon Series. Designed to offer you unrivaled performance, superior usability, advanced connectivity and exceptional serviceability.

Features

• Fastest cutter on the market thanks to Stepless Speed Maximization (patented) – The tool continuously optimizes its motor and pump settings, giving you maximum speed at any tool load
• Maximum operating flexibility with two operation modes – Reduced speed training/demo mode and high speed Pentheon mode
• Two-speed inline control handle – Switch between high-speed and low-speed and keep perfect control at all times
• Electronic motor control and pressure monitoring – Constant lifetime performance for every Pentheon tool
• Charge batteries directly on the tools with the On-Tool Charging System
• Priority charging for on-tool batteries over batteries on a separate charger
• Charge up to six batteries automatically – Connect up to three chargers to one single outlet
• Holmatro battery – Power Pentheon tools as well as OmniLock struts (patented) and other upcoming Holmatro products
• Easy tool operation on all sides of a vehicle – Inline control handle with 360° access
• Hold every tool in any position – 360° carrying handle made of tough, damage-proof material
• Flawless performance under water, at high and low outdoor temperatures and in rain and snow
• Easier communication during rescue operations – A new and improved drive system ensures tool operation at a lower sound level
• Automatic LED lights in the carrying handle, powered by the main battery. The lights can also be operated manually
• Connect every tool to your tablet or phone with Bluetooth®
• Easy to use and intuitive MyHolmatro app
• Real-time diagnostics during every operation – Monitor battery state of health and state of charge, pump stage, motor temperature, working pressure (including peak pressure) and speed mode
• Quickly and easily perform an automated Pentheon Self Check with the MyHolmatro app – Automatically check the drive system, speed and pressure, battery firmware and battery state of health

Details
Articlenumber	151.002.423
Basic specifications
model	PCU30CL
max. working pressure	720/72 (bar/Mpa) 10443 psi
battery included	no
Performance
max. cutting opening	170 mm 6.7 in
protection rate	IP57
directives	2006/42/EC, 2014/30/EU, 2014/53/EU
theoretical cutting force	549/56 (kN/t) 123420 lbf
General specifications
NCT	yes
cutter jaw	inclined
Dimensions, weight and temperature
weight, ready for use	15.2 kg 33.5 lb
weight excl. battery	13.7 kg 30.2 lb
dimensions (AxBxC)	811 x 270 x 288 mm 31.9 x 10.6 x 11.3 in
Norms
EN 13204 classification	BC150F-15.2
NFPA 1936, cutting capacity	A6 B5 C6 D6 E6 F2
NFPA 1936 compliant	yes
EN 13204, cutting capacity	1H 2G 3G 4F 5G
EN 13204 compliant	yes
Cutting performance
round bar (S235 acc. to EN 13204)	31 mm 1.2 in
