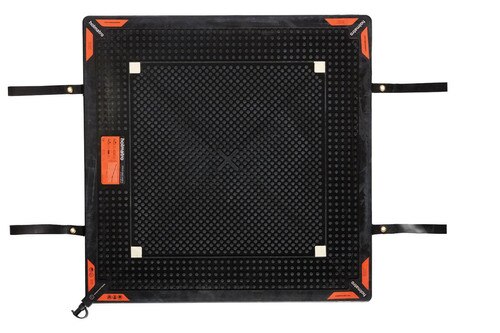

Holmatro Stack Bag HSB40

High-pressure lifting bag, 12 bar / 174 psi system, part of the Holmatro Stack Bags Series. The contact surface of the Stack Bag remains flat when pressurized. Up to three Stack Bags can be stacked for safe and stable lifting over a greater height.

Standard supplied with:

• Carrying straps
• Flexible integrated dust cap on air inlet

Features

Flat surface when inflated

• Greater contact surface
• For safe and stable lifting
• Easy to handle, first time right

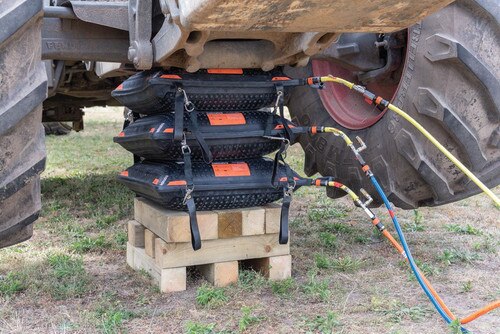

Up to three bags can be stacked

• For greater lifting height (max 510 mm / 20 inch)
• Stacked bags have a smaller footprint than conventional bags to lift the same distance

Carrying straps

• 2 x 2 straps on opposite sides of the bag for easy carrying

Clear markings of contact area

• For quick and easy stacking of up to three bags

Serrated, multi-purpose headOptimized non-slip design

• To help prevent stacked bags from shifting

Clear indication of safety warnings, technical specifications and lifting height

• To help you work safer and easier

Data Matrix label for asset management

• To help you register, inspect and maintain the Stack Bags

Compliant with relevant safety standards

• Meets EN 13731 and NFPA 1936 2020ED

Specifications

Article Number	151.000.949
Model	HSB40
Max. working pressure	12 / 1.2 (bar/Mpa), 174 psi
Max. lifting capacity	388 / 39.6 (kN/t), 87226 lbf
Max. inflation height	170 mm, 6.7 in
Thickness incl. profile	27 mm, 1.1 in
Max. lifting capacity (12 bar/174 psi)	388 / 39.6 (kN/t), 87226 lbf
Max. lifting capacity (8 bar/116 psi)	259 / 26.4 (kN/t), 58226 lbf
Lifting capacity at max. lifting height (12 bar/174 psi)	154 kN / 15.7 t / 103 kN / 10.5 t, 34621 lbf / 23155 lbf
Lifting capacity at insertion height plus 25 mm / 1 in. (8 bar /116 psi)	225 kN / 22.9 t, 50582 lbf
Lifting capacity at insertion height plus 25 mm / 1 in. (12 bar /174 psi)	338 kN / 34.5 t, 75985 lbf
Material	Reinforced with 2 aramide inlays
Air content (8 bar/116 psi)	9.4 cu ft
Weight, ready for use	13 kg, 28.7 lb
Dimensions (AxBxC)	620 x 620 x 27 mm, 24.4 x 24.4 x 1.1 in
NFPA 1960 compliant	Yes
EN 13731 compliant	Yes
