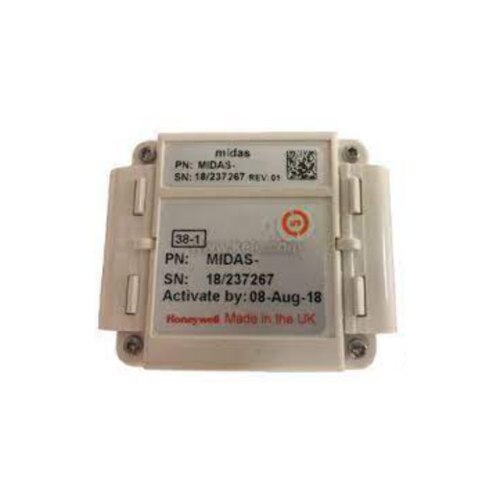

Honeywell Midas® Sensor Cartridge Sensor, H

Supply Voltage: 24 VDC -15% to 10% @ 208 mA

Signal Output: 3 alarm relays, 1A @ 30 VDC or 0.5A @ 125 VAC, 4-20 mA @ 250 Ω

Repeatability: ±5% of measured value

Linearity: ±2% of measured value

Measurement Range: 9-100 ppm

Gases Detected: H

Sensing Technology: Single-pass, infrared non-dispersive

Coverage: 10' (3 m) sampling and exhaust provided, 100 ft (30 m) maximum

Warm Up Time: <10 minutes

Response Time: 2 to 30 seconds depending on sample tube length

Operating Temperature: 32° to 104°F (0° to 40°C)

Operating Humidity: 15% to 90% RH non-condensing

Enclosure Rating: NEMA 1

Dimensions: 5.9 in H x 12.6 in W x 6 in D (15 x 6.5 x 15.3 cm)

Weight: 1.8 lb (0.8 Kg)

Approvals: ETL, CE

Warranty: 2 years

Features:

• Three alarm levels with N.O. or N.C. alarm contacts

• 4 digit display status indication

• 4-20 mA output signal

• 10 foot (3m) sampling tube and exhaust included

• Visual alarm indication

• Local indication of current and peak gas levels

• NEMA 1

• Modbus/TCP communication protocol
