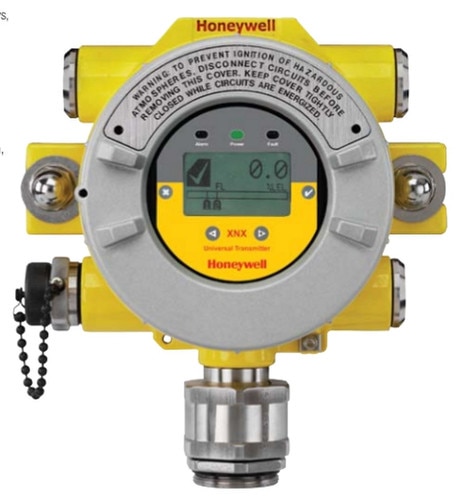

Honeywell XNX Universal Gas Detector Transmitter including MPD CATALYTIC BEAD sensor combustible 0-100% LEL (Lower Explosive Limit)

DISPLAY 4-20 mA RELAYS UL ATEX CSA UL DIV 1 ZONE 1 SIL2 HART MODBUS

Features

The XNX Universal Transmitter marks a new turn in gas detection from Honeywell Analytics. It supports the widest range of sensors on a common platform and offers a modular choice of inputs and outputs.

FEATURES

High performance

• Flammable gas detection 0 to 100% LFL/LEL

• Point IR with heated optics provides immunity to poisoning and no hidden faults

• Open-path IR flammable gas detection in LEL-m measurement

• Electrochemical cell offers toxic gas detection in ppm

• IR cell provides CO2 and combustible gas monitoring

• Robust and reliable operation in explosive areas and harsh environments

Flexible Operation

• 3 versions - supports mV (Catalytic Bead and IR Cell), Electrochemical Cell and IR (point and open-path) gas detection

• Multi-Purpose Detector (MPD) with field serviceable mV, Catalytic bead and IR Cell capability

• 4-20mA with HART® as standard

• Multiple communications options include up to 3 relays, MODBUS® and FOUNDATION® H1 Fieldbus (pending)

• Optional local IS port for handheld HART configurator

Easy to Use

• Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text, etc.) to display gas and sensor readings

• User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French, Russian, Chinese)

• Self-test and fault indication features

• Non-intrusive, one-man operation

• Quick calibration with auto-inhibit

Easy to Install

• 3 or 4 wire operation, source, sink or isolated

• Use with conduit or cable installations

• Simple plug-in sensors and replaceable cells

• NEMA 4X IP66 rated for rugged indoor/outdoor use

Cost Effective

• Minimal training required

• One-man operation

• Plug-in sensor replacement

• All necessary accessories included

Applications

• Offshore Oil & Gas production platforms

• Onshore Oil terminals

• Refineries

• Gas Transmission

• Gas Distribution

• LNG terminals

• Gas storage terminals

• Chemical plants

• Petrochemical plants

• Solvent recovery operations

XNX is designed for flexible integration, simple installation, user friendly operation and straightforward maintenance. It is ideal for use with a range of gas monitoring controllers or industry standard PLCs. Users are assured of being protected in all conditions with Honeywell Analytics gas monitoring solutions.

Bringing together the best solutions in gas detection

Catalytic Bead

• Supports Honeywell Analytics 705, 705HT, Sensepoint, Sensepoint HT and MPD sensors

• Fast response to wide range of hydrocarbons and flammables

XNX's modular design enables Honeywell Analytics to offer appropriate, cost effective solutions to a wide range of gas detection requirements.

With the XNX, you are freed from the need to add extra controllers, junction boxes, relays, monitors and other equipment accessories.

The XNX Universal Transmitter is an excellent choice for those who want a total integrated monitoring and safety solution for an industrial plant.

The XNX's powerful advanced communications module adds increased functionality and flexibility to a gas detection network. Standard HART communications, along with optional Modbus, Foundation Fieldbus (pending) or relays, interface with a PLC and a host of other protocol compatible devices found in industrial applications.

Back-lit, easy-to-read LCD display with icons includes a broad range of language options including English, Spanish, French, Italian, Portuguese, German, Russian and Chinese to meet global requirements.
