RKI Instruments Airlink 7010 controller, 32 channels with 100-240 VAC, 900 MHz radio - 74-7910-A-32

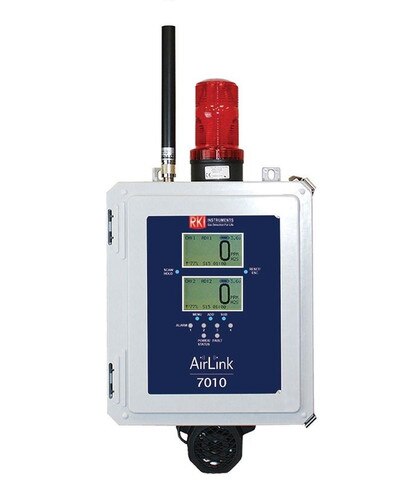

The RKI Instruments AirLink 7010 Controller is a wireless controller that supports up to 32 wireless sensor transmitter inputs. Four of the channels can be set up for 4-20 mA wired input, making this hybrid controller compatible with both wireless and wired sensors. Durable, flexible, and customizable, the AirLink 7010 controller features a 5-button interface, two LCD displays with LED backlighting, and a NEMA-4X weatherproof enclosure.

Features

32 Channel hybrid controller - supports wireless transmitters and up to 4 wired transmitters
Radio options: 900 MHz radio or 2.4 GHz Standard
12 to 35 VDC operating voltage with optional AC power supply
Operating temperature range of -40°C to +70°C
5 Push-button interface (ADD, MENU, SUB, SCAN/HOLD, and RESET/ESC)
Two graphical LCDs with LED backlights
Programmable alarms: 4 configurable alarm set-points; 4 front panel ALARM LED indicators (Red); 4 dry-contact relays (4 amps maximum per relay)
Status LEDs for power and fault: multi-color status light; Amber fault LED for indicating system faults
Output options: Wet contact fault DC fault terminal, relay 4 can optionally be configured as a fault relay, RS-485 Modbus
NEMA-4X standard fiberglass enclosure with clear window; optional stainless-steel enclosure with clear window
