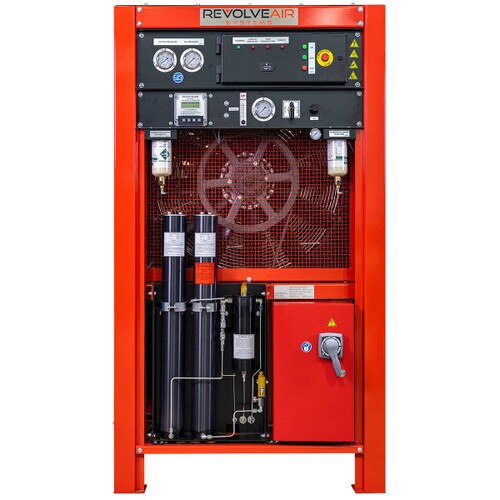

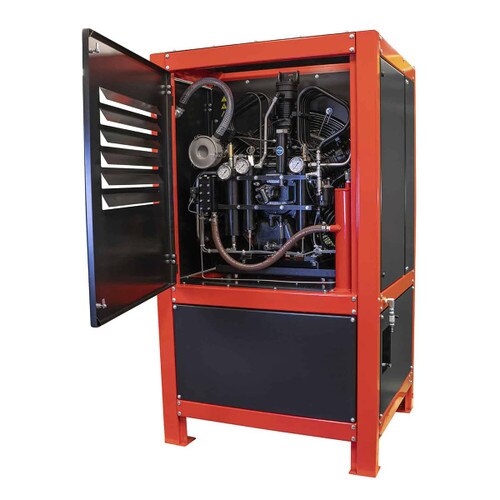

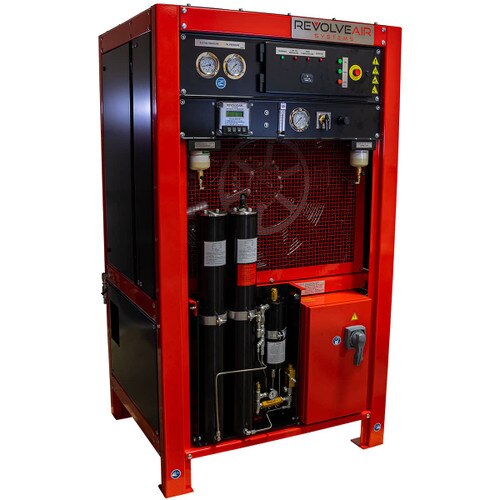

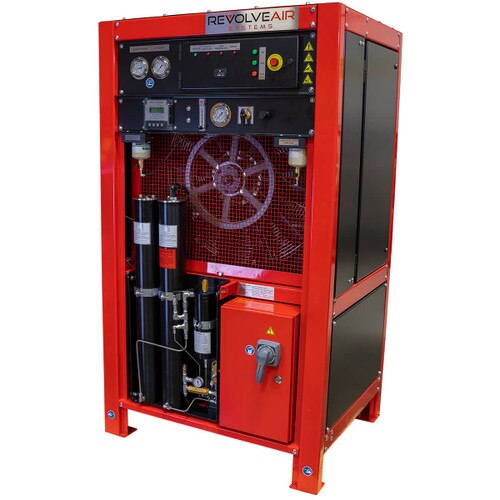

RevolveAir Systems 7000psi 20hp High Pressure Breathing Air Compressor
Details
Details
High Pressure Compressor, long life, low noise, high efficiency, reduced heat.
Features
RevolveAir Dimensions (Typical Dimensions)
NOTE: Item description and image may not reflect the exact model listed. For the most accurate information please call (877) 637-3473 or
Features
- Five Stages
- Latest Technology in Valve & Ring Design
- Spin-On Type Oil Filter
- Pressurized Oil Lubrication System
- Cast Iron Block & Cylinders
- Designed & Built in the USA
- Relief Valves on 1st, 2nd , 3rd, & 4th Stage
- Connecting Rods with Needle Roller Bearings
- Stainless Steel Valve Assemblies on all Stages
- Radial Layout for Reduced Vibration and Crankshaft Loading
- Intercoolers on 1st, 2nd, 3rd, & 4th, After Cooler on the 5th Stages
- Water Separators on 2nd, 3rd, & 4th Stages.

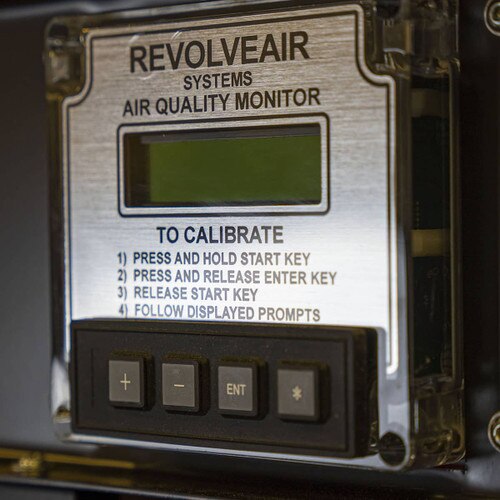

- Oil Pressure Switch / ACD-Automatic Drain Block with Solenoid
RevolveAir Dimensions (Typical Dimensions)
- 34″ Wide x 42″ Deep x 68″ Height
- R510 FAN
- Fan Diameter 17.2″
- R520/R530 FAN
- Fan Diameter 29.5″
NOTE: Item description and image may not reflect the exact model listed. For the most accurate information please call (877) 637-3473 or
