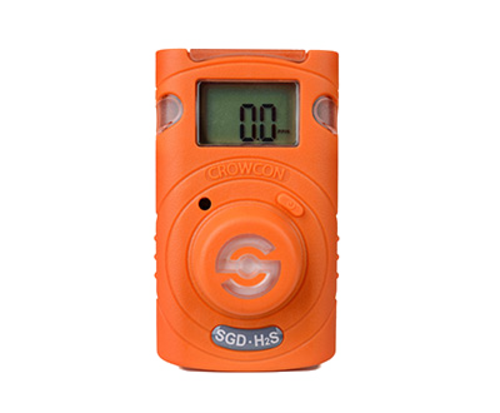

The Clip Single Gas Detector (SDG)
Details
Details
Description
The Clip Single Gas Detector (SDG) is an industrial gas detector designed for use in hazardous areas and offers reliable, durable fixed-lifespan monitoring in a compact, lightweight and maintenance-free package. Clip SGD has a 2-year life, available for hydrogen sulphide (H2S), carbon monoxide (CO) or oxygen (O2).
The Clip SDG personal gas detector is designed to withstand the harshest industrial working conditions, delivering industry leading alarm time, changeable alarm levels and event logging, as well as user-friendly bump test and calibration solutions.
Compact and lightweight, the Clip SDG is non-intrusive and comfortable to wear, perfect for any length shift. Its single button operation means it’s simple to use with minimal training required, while its docking station keeps monitors correctly configured without requiring a service or technical team.
Specifications
Size 91 x 54 x 32mm (3.6 x 2.1 x 1.3ins) Weight 93g (2.7oz) toxic, 104g (3.7oz) O2 Alarms Top, front and side visual LEDs
90 dB audible alert at 10cm
VibrateT90 Response Time < 30 seconds Temperature H2S -30oC + 50oC (-86oF + 122oF)
CO -30oC + 50oC (-86oF + 122oF)
O2 -30oC + 50oC (-86oF + 122oF)
Humidity 15% to 90% non-condensing RH Event logging Most recent 30 events Ingress protection IP66 and IP67 Tests Self test on activation and every 20hrs: continuous automatic battery integrity tests Operational life 2 years > 2900 alarm minutes* Shelf life 6-month shelf life prior to activation
Shown on box labelCompliance EMC Directive 2014/30/EC, FCC CFR 47 Part 15, IECES-003 Certification UL-913 & CSA-C22.2 No.157
Class 1 Div 1 & 2, Groups A, B, C and D, T4
ATEX II 1G Ex ia IIC T4 Ga
IECEx Ex ia IIC T4 GaWarranty 2 years from activation* Sensor range H2S – 0-100ppm
CO – 0-300ppm
O2 – 0-30% vol.
Communication accessory USB IR link for event download and configuration Crowcon Connect Compatible? No * 4 alarm minutes per day
